VistaZ Power — Product Datasheet
Product Overview

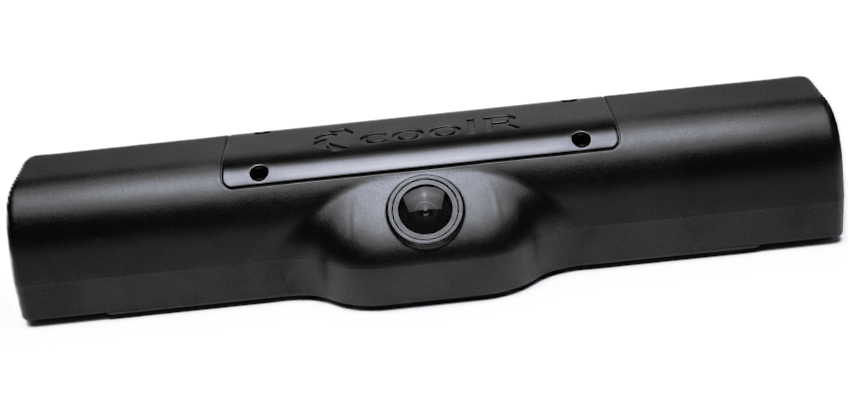

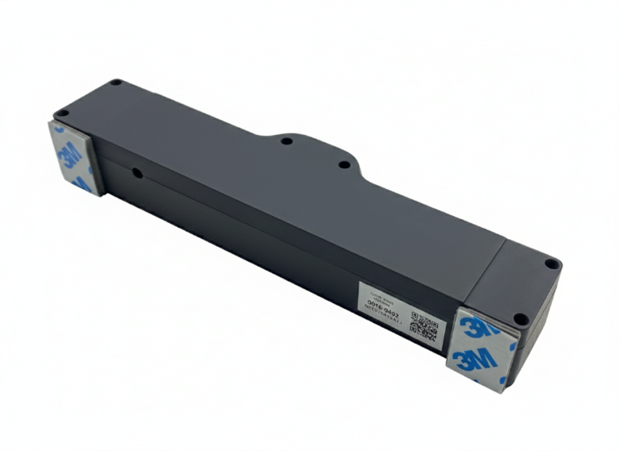

VistaZ Power is CoolR's slim, always-on smart camera designed for retail coolers and freezers. It draws primary power directly from the cooler's DC supply and automatically switches to an internal battery backup during power interruptions — ensuring uninterrupted image capture and telemetry without manual intervention.
VistaZ Power is part of the StoreAware platform and delivers images and telemetry directly into sales workflows and automated replenishment systems.
When to Choose VistaZ Power
| Scenario | Fit |
|---|---|
| DC power source available on cooler | ✅ Ideal |
| Always-on image capture required | ✅ Ideal |
| Slim form factor preferred | ✅ Ideal |
| No external power available | ❌ Consider VistaZ (battery + harvesting) |
Key Features
- Always-on operation — primary DC power with automatic battery failover
- Slim form factor — approximately half the width of the standard VistaZ
- Cellular, Wi-Fi & Bluetooth connectivity
- IP67-rated enclosure for cooler and freezer environments
- Wide operating temperature range — −20 °C to +50 °C
- 5 MP wide-angle camera with 210° diagonal field of view
- Integrated sensors — temperature, accelerometer, and gyroscope
- GNSS for asset location tracking
- FCC, CE, UKCA, RoHS, and UN 38.3 certified
Technical Specifications
Physical & Environmental
| Parameter | Specification |
|---|---|
| Dimensions | 183.6 × 42.1 × 28.3 mm |
| Weight | 123 g |
| Enclosure Rating | IP67 |
| Operating Temperature | −20 °C to +50 °C |
| Storage Temperature | −20 °C to +70 °C |
Power
VistaZ Power connects to the cooler's DC supply via the standard pigtail power harness (Cable 002) — a factory-terminated barrel jack cable supplied with every unit.

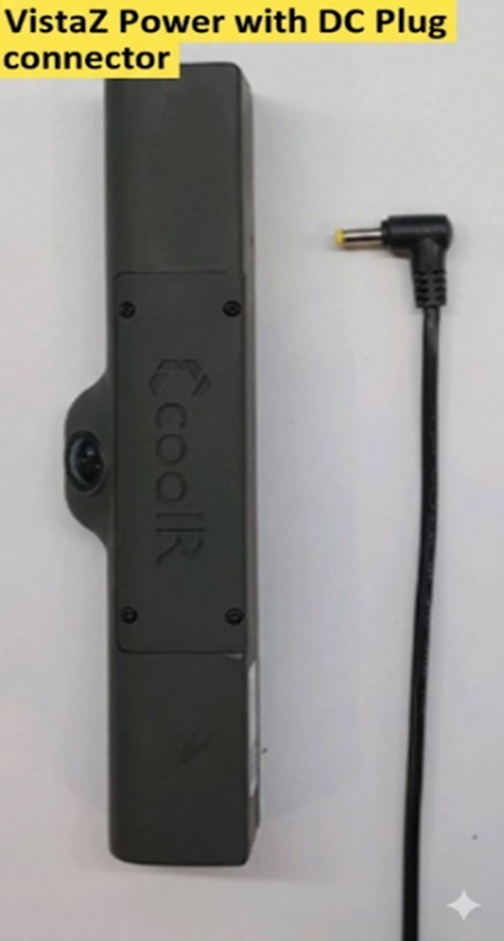

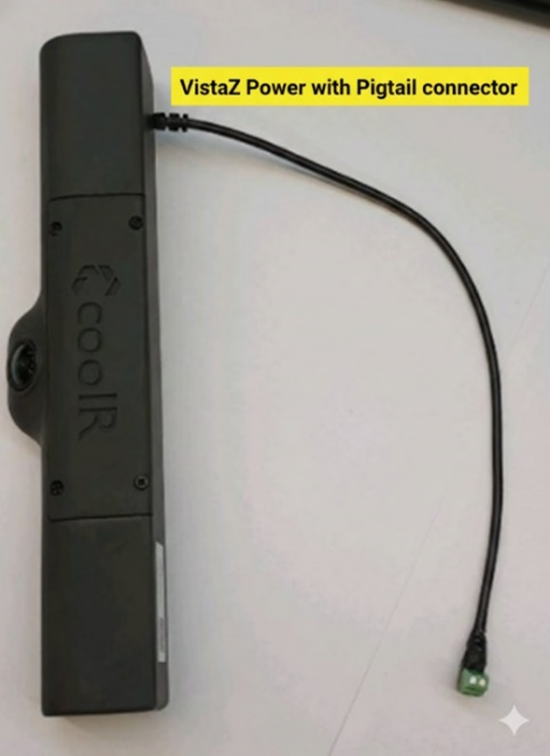

Standard DC barrel connector and VistaZ Power pigtail harness (Cable 002)
Power Consumption Characteristics
Recommended input voltage range: 7–24 V DC. 5 V operation is supported as a constrained case only up to the standard Cable 002 harness rating and is therefore not recommended for normal installations. The device features automatic battery failover on power loss and automatic recharge on power restoration. The max input current and power values below are for supply sizing and worst-case input draw, not typical continuous consumption.
| Parameter | 5 V | 7 V | 12 V | 24 V |
|---|---|---|---|---|
| Max Input Current (supply sizing) | 2.7 A | 2.5 A | 1.5 A | 1 A |
| Max Input Power (supply sizing) | 13.5 W | 17.5 W | 18 W | 24 W |
| Daily Energy Consumption (2 images/day) | ~0.50 Wh | ~0.71 Wh | ~0.86 Wh | ~2.00 Wh |
| Yearly Energy Consumption (2 images/day) | ~182 Wh | ~260 Wh | ~314 Wh | ~730 Wh |
| Approx. Yearly Cost (USD, ~$0.15/kWh) | ~$0.03 | ~$0.04 | ~$0.05 | ~$0.11 |
| Approx. Yearly Cost (EUR, ~€0.28/kWh) | ~€0.05 | ~€0.07 | ~€0.09 | ~€0.20 |
| Idle Mode Current | < 5 mA | < 5 mA | < 4 mA | < 4 mA |
| Active Mode Current | < 60 mA | < 50 mA | < 30 mA | < 20 mA |
| Peak Current | Up to 1.5 A | Up to 1.5 A | Up to 1 A | Up to 500 mA |
| Battery Charging Current | 550 mA | 390 mA | 230 mA | 120 mA |
Measurement Methodology
- Input voltage supplied using a regulated power supply (RPS) at 5 V, 7 V, 12 V, and 24 V.
- Device current and voltage measured using a Joulescope precision analyzer connected in series with the input supply.
- Measurement duration: 24 hours continuous operation.
- Testing includes normal operation with idle, image capture, cellular/LTE transmission cycles and battery charging.
- Device configuration: Captures 2 images per day.
Note: Energy consumption increases with higher input voltage due to conversion losses.
Cable 002 Harness Specifications
| Parameter | Specification |
|---|---|
| Cable Outer Diameter | 3.8 mm ± 0.15 mm |
| Conductor | 22 AWG × 2C |
| Cable Standard | UL 758 (AWM), Style UL2095 |
| Rated Current | 2.7 A |
| Temperature Rating | 80 °C |
| Voltage Rating | 300 V |
| Flame Rating | VW-1 |
| Operating Temperature | −20 °C to +80 °C |
| Compliance | RoHS, REACH (SVHC) |
| DC Plug Rating | ≥30 V, ≤3 A, center positive, nickel-plated contacts |
| Length | 3 m |
Note: For installations where a barrel jack connection is not available, an alternative direct-wire method (Cable 001) exists but is intended only for extreme cases and requires qualified personnel.
Connectivity
| Technology | Details |
|---|---|
| Cellular | LTE Cat-1 bis |
| LTE-FDD Bands | B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B13 / B17 / B18 / B19 / B20 / B25 / B26 / B28 / B66 |
| LTE-TDD Bands | B34 / B38 / B39 / B40 / B41 |
| GNSS | GPS, GLONASS, BDS, Galileo, QZSS |
| SIM | Nano SIM |
| Bluetooth | BLE 5.4 |
| Wi-Fi | IEEE 802.11 b/g/n, WPA2 / WPA3 |
Imaging & Sensors
| Parameter | Specification |
|---|---|
| Camera Resolution | 5 MP |
| Field of View | 210° diagonal |
| Temperature Sensor | −40 °C to +85 °C range |
| Motion | Accelerometer and gyroscope |
| Internal Storage | 64 Mbit flash |
Battery Backup

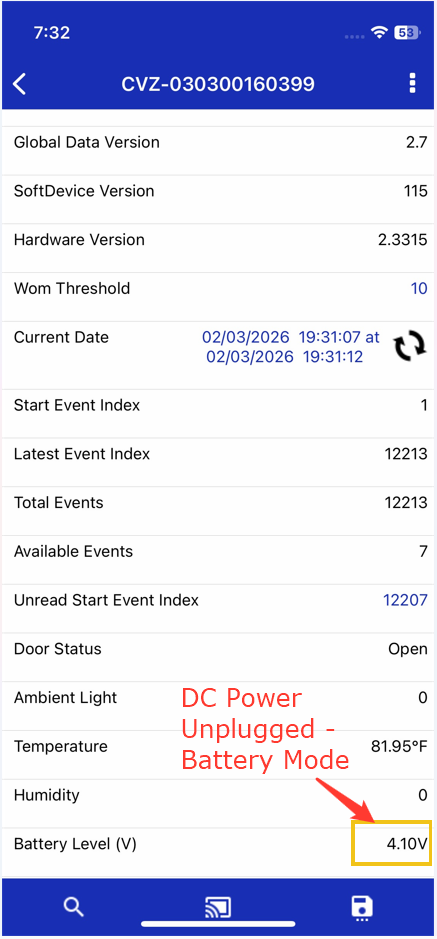

The internal battery is intended strictly as a backup power source — not for continuous primary operation.
| Parameter | Specification |
|---|---|
| Battery Type | Li-ion (14500 form factor) |
| Capacity | 500 mAh |
| Backup Duration | > 1 month at 1 capture per day |
| Charge Cycles | 300+ |
| Capacity Retention | ~80% after 5+ years |
| Replacement | Authorized CoolR personnel only |
Installation Instructions
VistaZ Power installation requires DC power connection and physical mounting. The device is designed for both horizontal (chest freezer) and vertical (glass door cooler) configurations.
Safety Notes (Mandatory)
⚠ Disconnect DC power before wiring. ⚠ Use insulated tools and ESD protection. ⚠ Verify voltage and polarity before plug-in.
Installation — Horizontal (Chest Freezer)
Step 1: Cable Routing

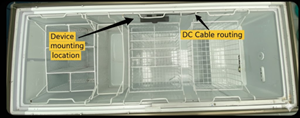

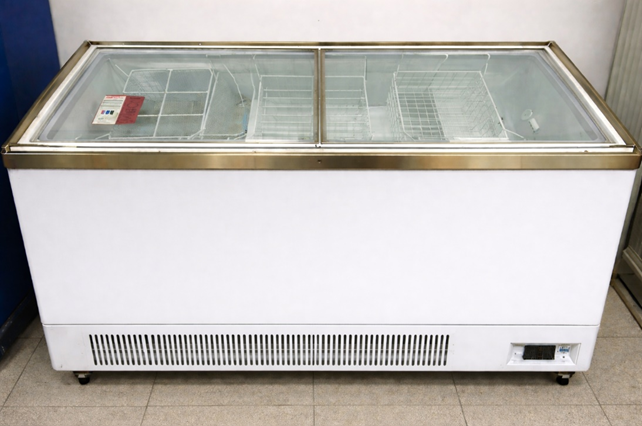

Figure 3–4: Chest freezer reference and internal cable routing
Step 2: DC Power Connection & Polarity

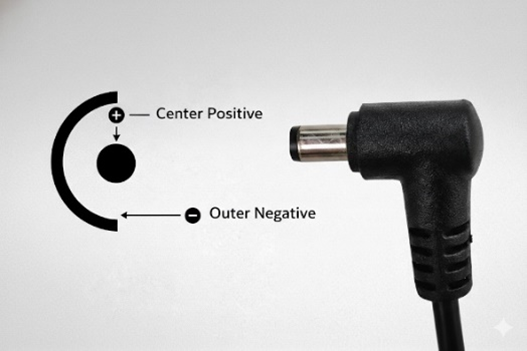

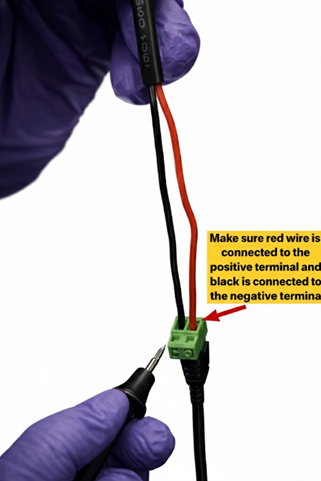

Figure 5–6: Insulated cable join and polarity reference
Step 3: Voltage Verification

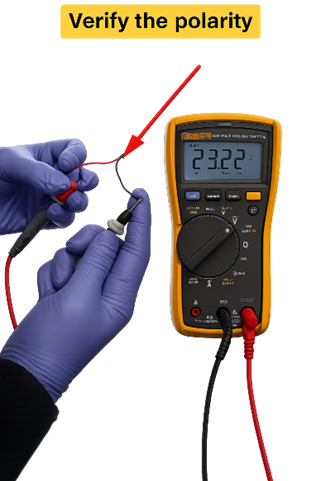

Figure 7–8: Voltage and polarity verification
Step 4: Final Mounting Position
Figure 9: Final mounted position and concealed cabling
Installation — Vertical (Glass Door Cooler)

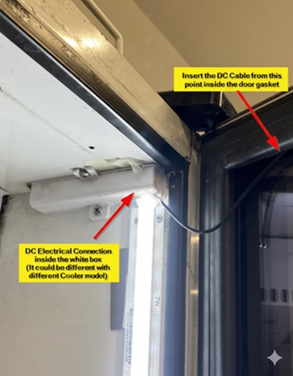

Step 1: Wiring and Cable Routing Through Door Gasket

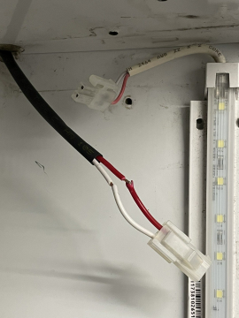

Images 1–2: Disconnect the existing LED strip connector, then inspect the connector and confirm the wire polarity.

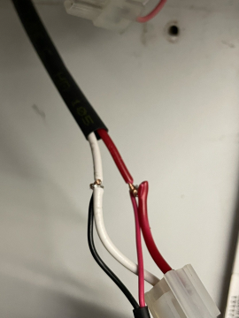

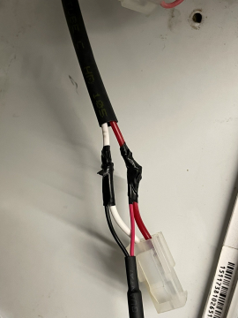

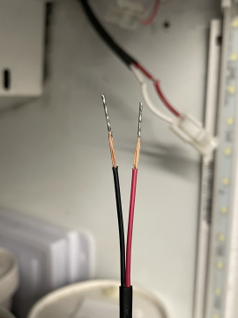

Images 3–5: Strip the DC plug cable ends, splice the DC cable to the LED supply wires, and insulate the joints with heat-shrink.

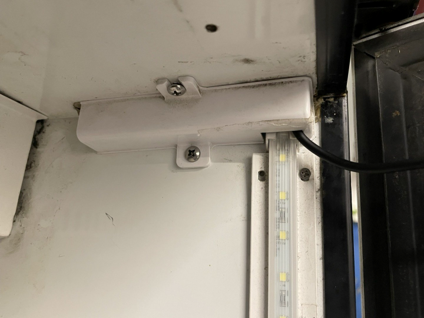

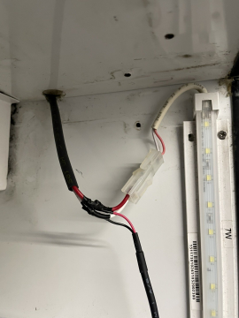

Images 6–7: Secure the spliced connection with tape, reconnect it to the canopy, and remount the LED light bar cover.

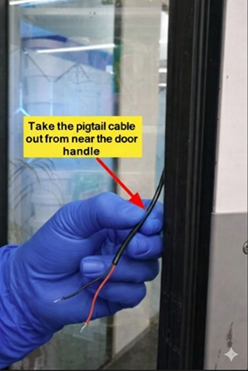

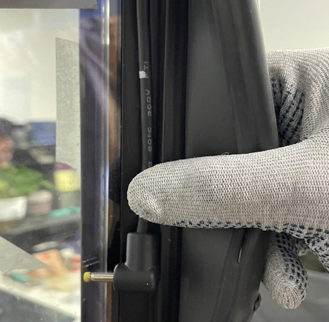

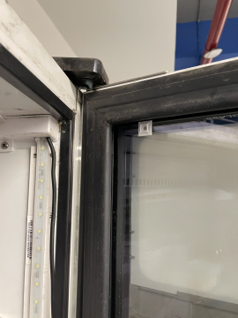

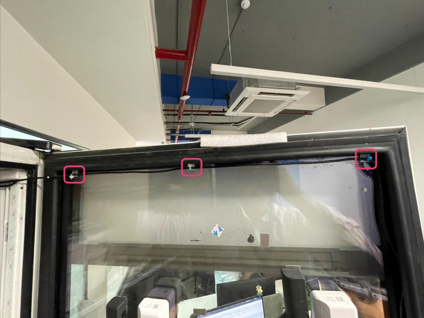

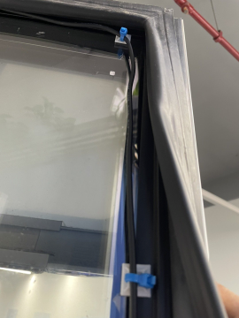

Images 8–11: Mark the clip positions, route the cable past the door-frame corner, secure it along the corner post, and press it into the frame edge.
Step 2: Voltage Verification

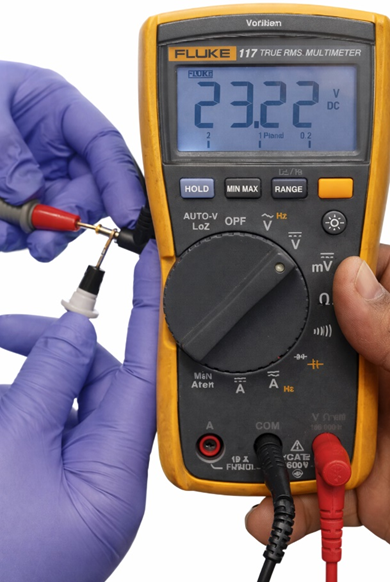

Images 12–13: Check the voltage at the DC plug connector with a multimeter and confirm the connector polarity.

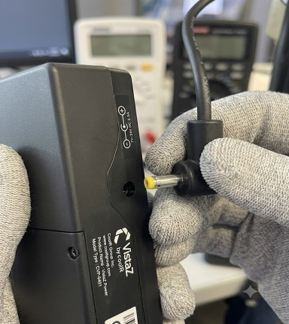

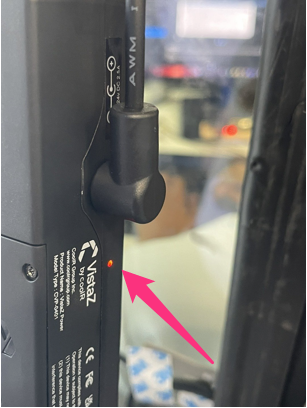

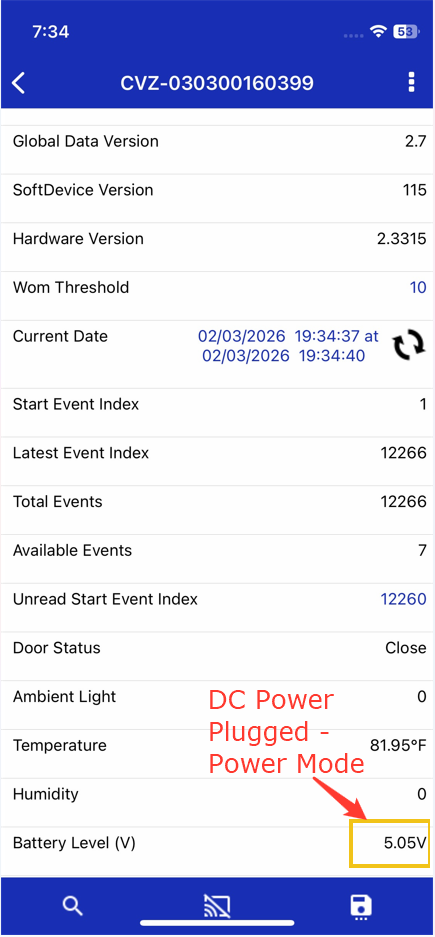

Images 14–15: Insert the DC connector into the device barrel jack and confirm the red LED indicates power connection.
Step 3: Final Mount

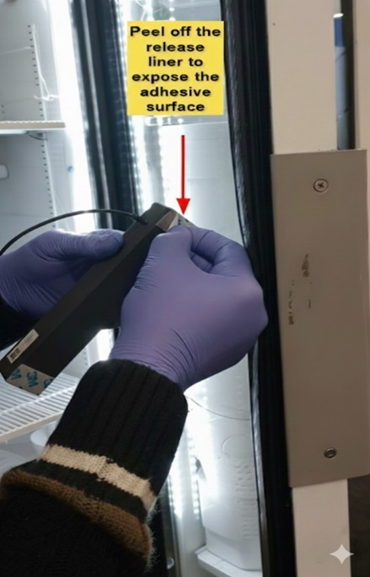

Images 1–2: Clean the door glass at the device mounting location, then peel off the release liner to expose the adhesive surface.

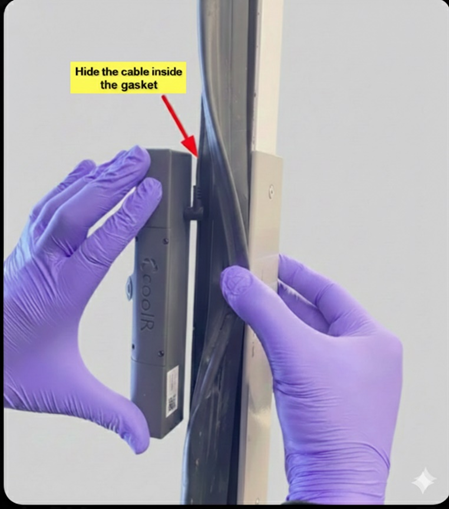

Images 3–4: Align the device with the mounting location and route the cable inside the door gasket.

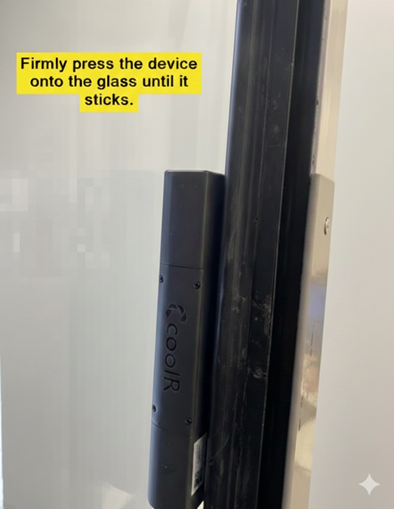

Images 5–6: Firmly press the device onto the glass, then confirm the final mounting position near the door handle with the camera facing the cooler interior.
- DC Power Cable: Establish a secure connection during installation. Avoid frequent disconnection and re-insertion of the cable, as it may cause a power surge and potentially damage the device.
Certifications
Certification status as of August 2026. Availability may vary by region.
| Certification | Region | Status |
|---|---|---|
| FCC | United States | Approved |
| CE (RED) | European Union | Approved |
| UKCA | United Kingdom | Approved |
| IC | Canada | Approved |
| RoHS | Environmental | Approved |
| EN IEC 62368-1 | Safety | Approved |
| BC EN IEC 62368-1 | Safety | Approved |
| UN 38.3 | Battery Transport | Approved |
Cooler & Freezer OEM Integration
VistaZ Power is designed for seamless integration into OEM cooler and freezer products. For details on power supply requirements, physical mounting, controller connectivity, and the OEM commercial program, see:
👉 Cooler & Freezer OEM Integration
Evaluation Sheet
The VistaZ Power installation and performance evaluation sheet can be downloaded using the link below:
📄 Download VistaZ Power Evaluation Sheet
Lifecycle & Support
Device Lifecycle
| Item | Specification |
|---|---|
| Expected Device Life | Up to 10 years |
| Battery Life | Up to 10 years |
| Warranty | 1 year |
| Serviceable Components | Battery only |
Support Contacts
| Function | Contact |
|---|---|
| Technical Support | support@coolrgroup.com |
| Sales | sales@coolrgroup.com |
ℹ Always include the device serial number, store location, and a relevant photo or screenshot when contacting support.
