Overview

The Home screen is your starting point in the app, showing all nearby outlets based on your current location. From here, you can quickly search, filter, and view outlet details, as well as access other features using the navigation bar at the bottom.

Layout​

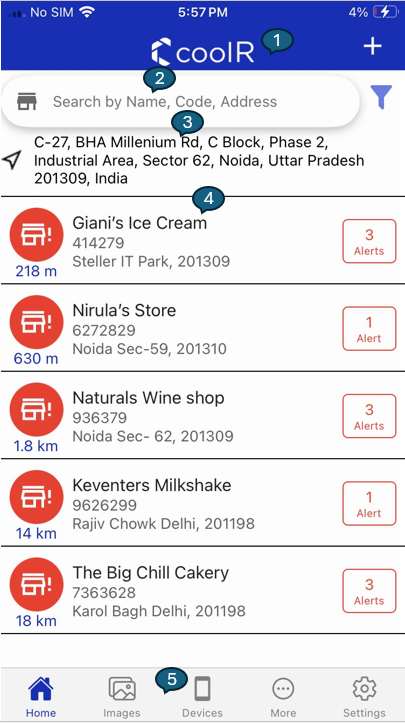

Below is the Home screen with key sections visually marked. Each area is designed to help you navigate and interact with the app efficiently

Home Screen Marked

1. Header​

Header Section

The header sits at the top of the screen with application theme match and include the logo and add outlet functioanlity.

The coolR logo is centered at the top, representing the app’s brand and providing a familiar starting point for users.

2. Add Location​

The "+" icon on the right side of the header allows you to quickly add a new outlet. Tapping this icon takes you to the Add Location screen, where you can enter details such as the outlet name, address, and other relevant information. This feature streamlines the process of expanding your outlet list, making it easy to keep your records up to date. After saving, the new outlet will appear in your Home screen list, ready for further management or monitoring.

Search Bar Section

The Search Bar helps you quickly find outlets, assets, or smart devices using flexible filters and intuitive icons.

1. Dynamic Icon​

The icon at the start of the search bar changes based on the selected filter:

  • Outlet: Displays the outlet icon when searching by location.
  • Asset: Shows the asset icon when searching for assets.
  • Smart Device: Shows the smart device icon when searching for smart devices.

This visual cue helps you instantly recognize the current search mode.

2. Search Field​

The search field allows you to enter a name, code, or address to find specific items. The search adapts to the selected filter:

  • When Outlet is selected, you can search by outlet name, code, or address.
  • When Asset is selected, you can search by asset serial.
  • When Smart Device is selected, you can search by device serial.
Note

The placeholder text and icon update automatically to match your chosen filter, making it clear what you are searching for.

3. Filter Section​

The filter section lets you choose the type of item you want to search for:

  • Tap the filter icon to open a menu and select Outlet, Asset, or Smart Device.
  • Once a filter is selected, both the icon and search behavior update to match your choice.

3. Current Address​

Location Section

The Current Address section shows your real-time location or address at the top of the Home screen. The app uses this information to display outlets that are closest to you, ensuring the list remains relevant as you move. If your location changes, the outlet list updates automatically to reflect nearby options. This feature helps you quickly find and manage outlets based on where you are, making your workflow more efficient and location-aware.

4. Location List​

Outlet List Section

The Location List is the main body of the Home screen, presenting a scrollable list of nearby outlets. Each entry provides key information at a glance:

1. Avatar Icon​

A visual indicator representing the outlet or device status:

  • Red with exclamation mark: Open alerts present
  • Gray camera: No device assigned
  • Green camera: Device assigned with no open alerts

2. Outlet Name​

Clearly displays the outlet’s name for quick recognition.

3. Outlet Code​

A unique identifier assigned to each outlet.

4. Address​

Shows the full address of the outlet for reference.

5. Distance​

Indicates the outlet’s distance from your current location (in miles or kilometers).

6. Open Alerts​

Displays the number of open alerts associated with the outlet. If alerts are present, a badge appears on the right, helping users quickly identify and prioritize those outlets requiring immediate attention.
